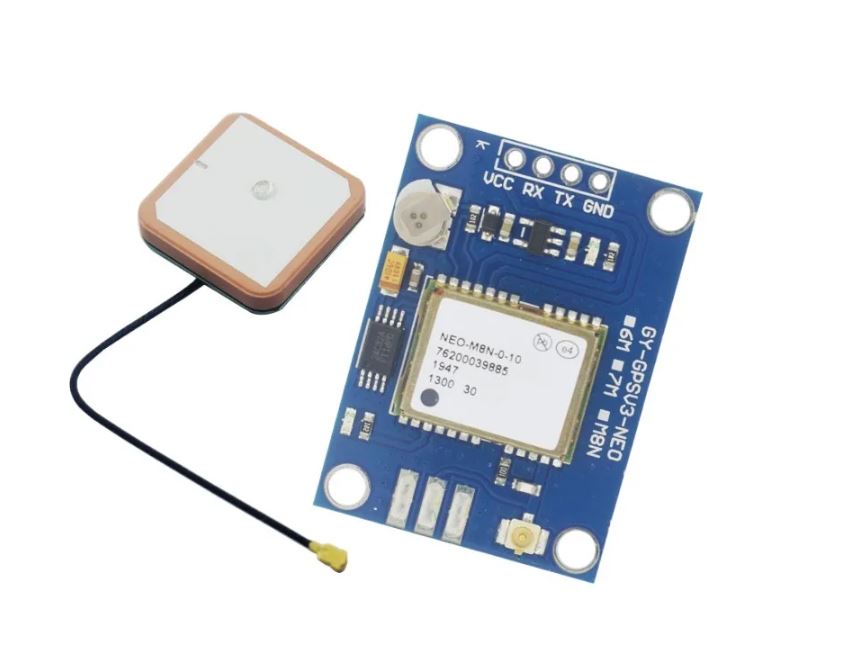

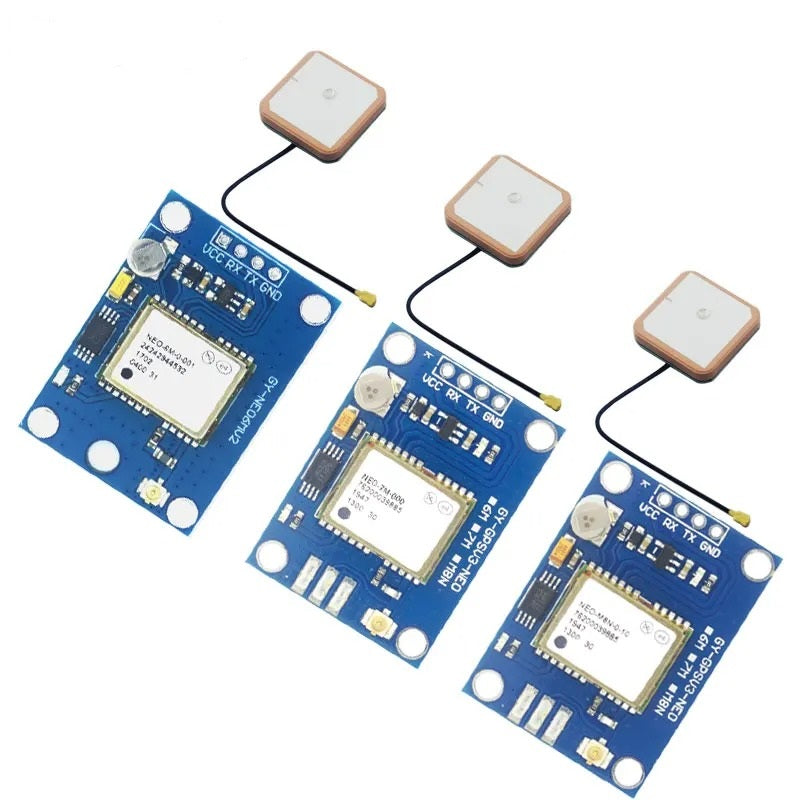

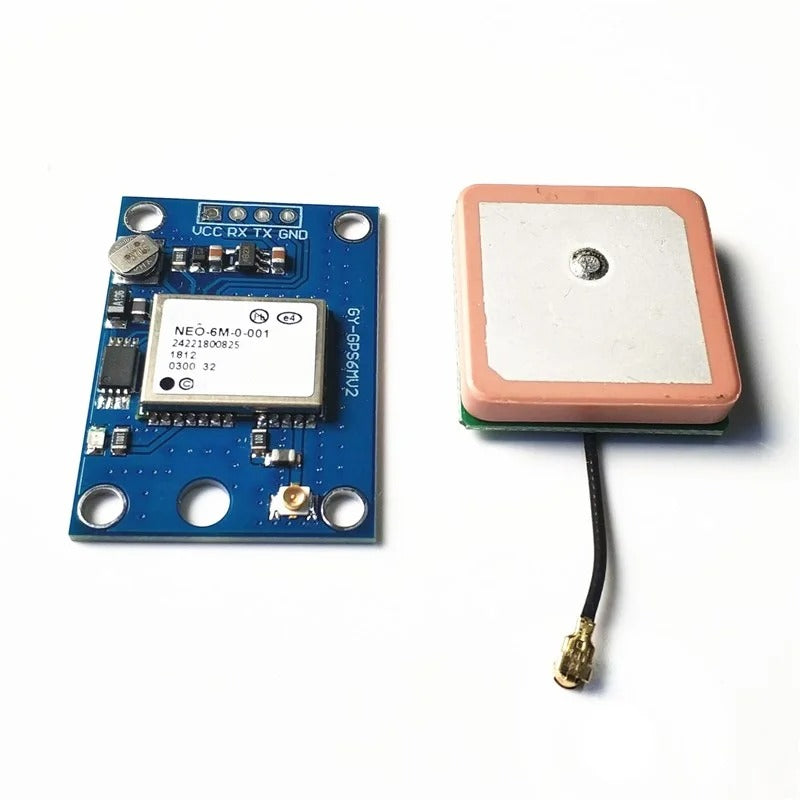

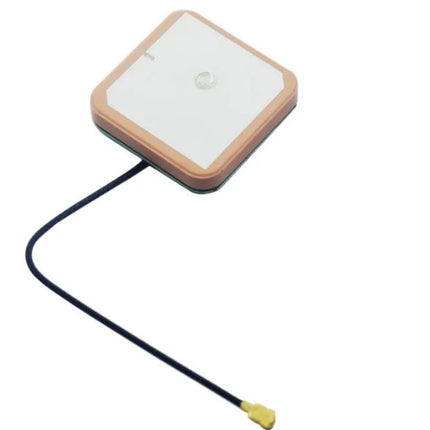

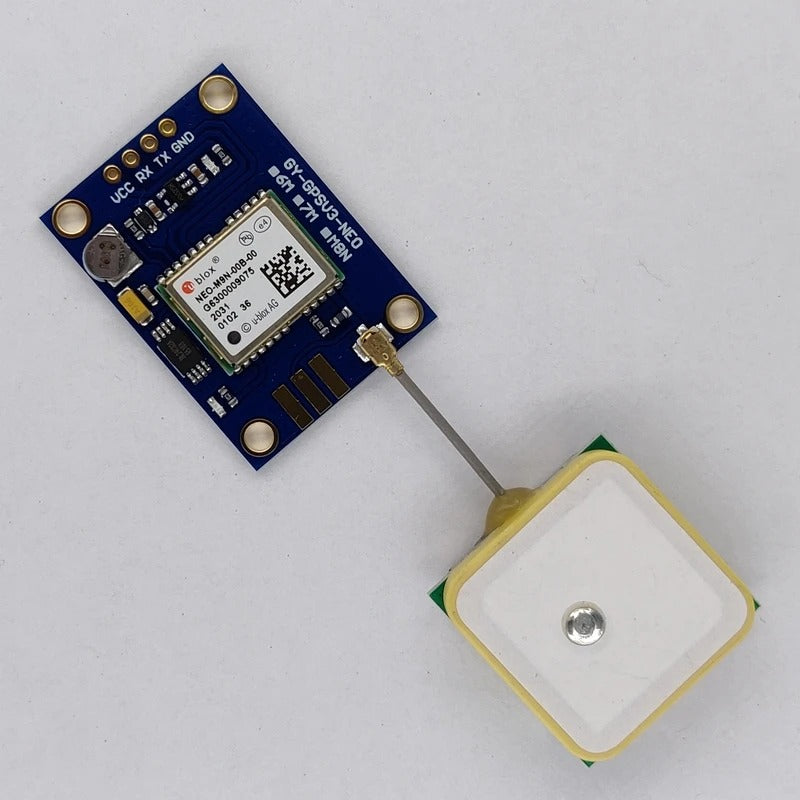

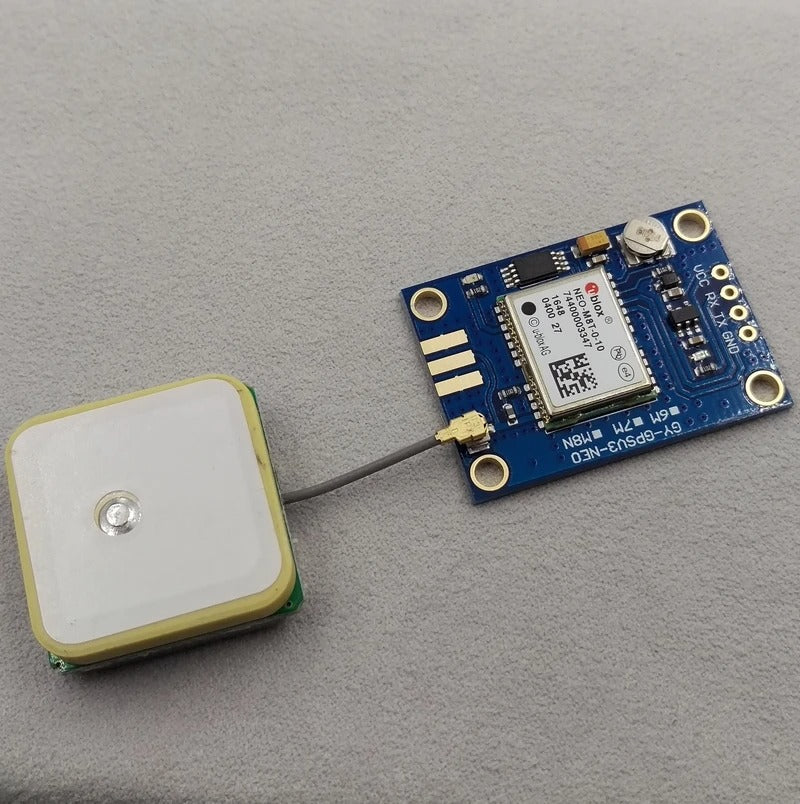

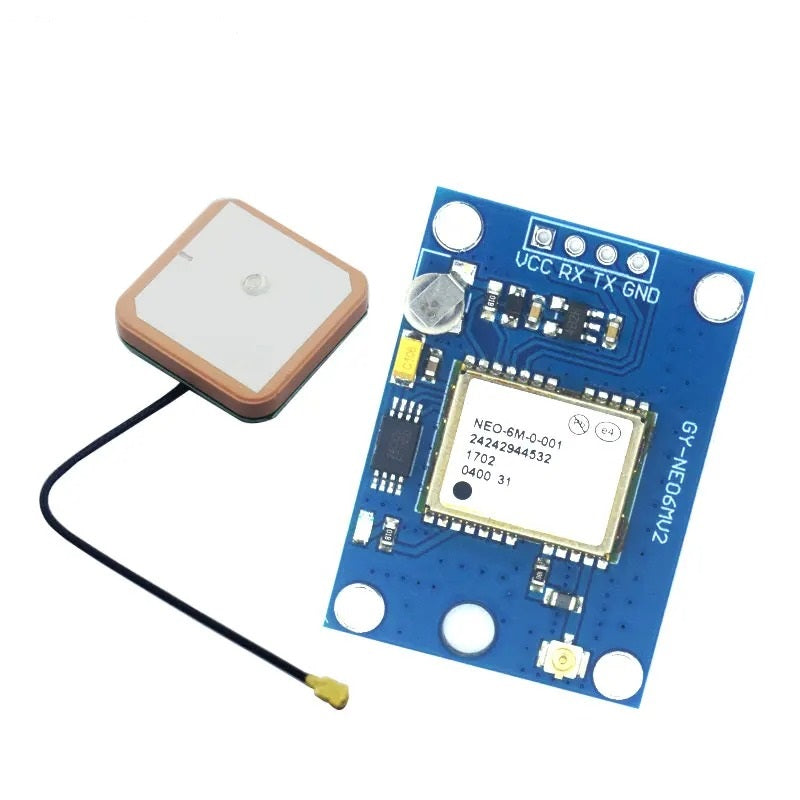

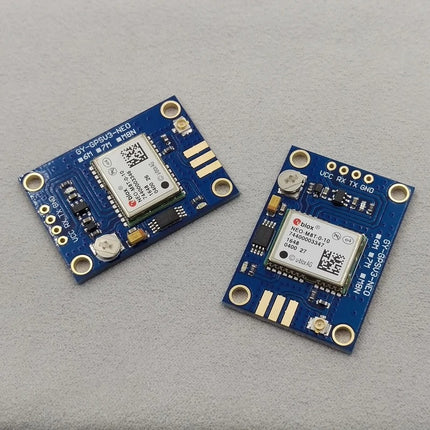

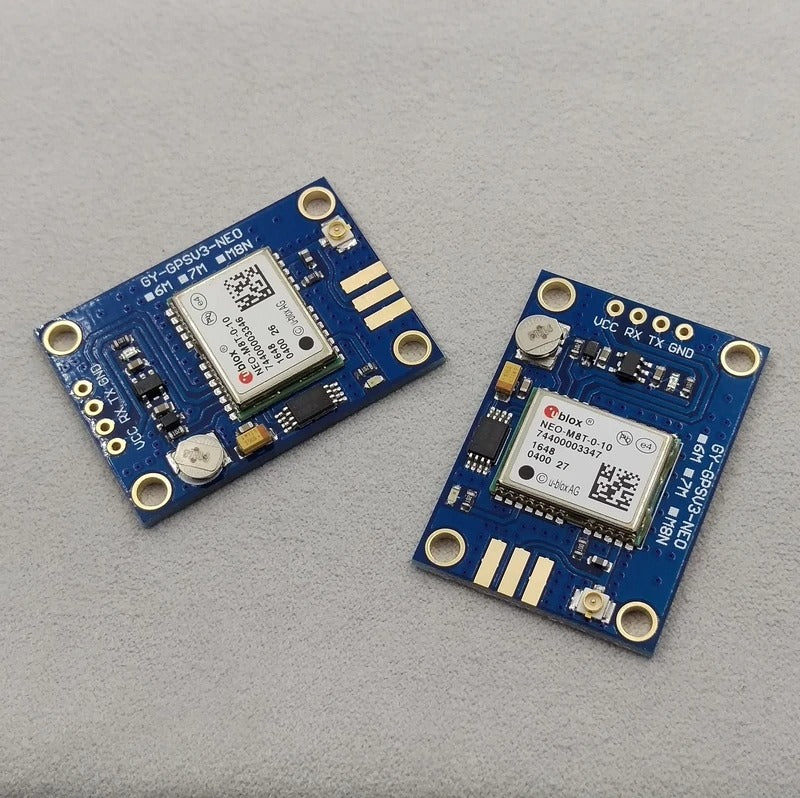

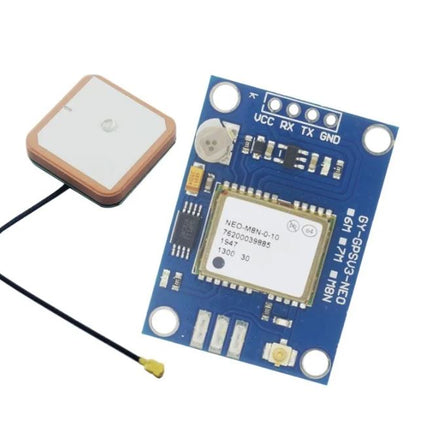

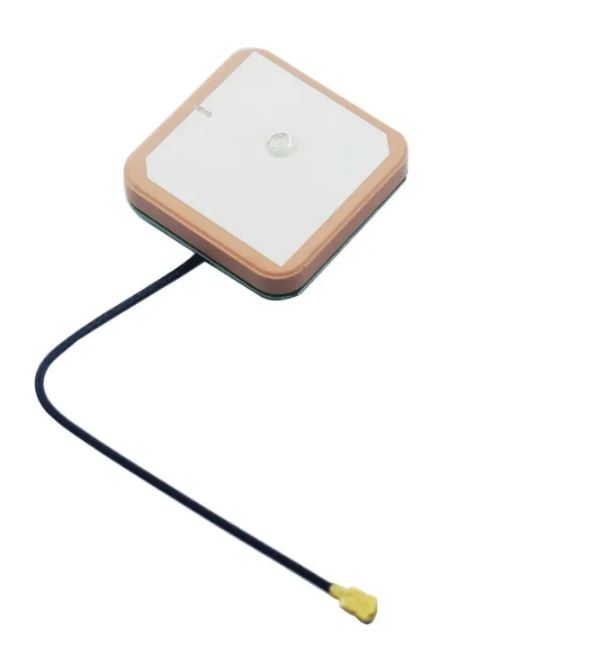

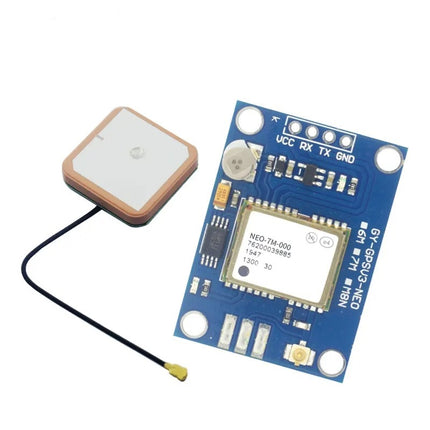

Original NEO-M8N/M9N-00B GPS Module GNSS positioning controller module with antenna

Description

The NEO-M9N module is based on the robust u-blox M9 GNSS chip, which provides exceptional sensitivity and acquisition times for all L1 GNSS systems. The u-blox M9 standard precision GNSS platform, offering meter-level accuracy, is the successor to the renowned u-blox M8 product line. The NEO-M9N supports simultaneous reception of four GNSS signals. The high number of visible satellites allows the receiver to select the best signals. This maximizes positioning accuracy, especially in challenging conditions such as deep urban canyons. The NEO-M9N detects jamming and spoofing events and reports them to the host, allowing the system to respond to such events. Advanced filtering algorithms mitigate the effects of RF interference and jamming, enabling the product to operate as intended. The NEO-M9N module integrates a SAW filter combined with an LNA in the RF path. This design enables normal operation even in the presence of strong RF interference, such as when a cellular modem is coupled to the NEO-M9N. The NEO-M9N offers backward pin-to-pin compatibility with previous u-blox generations, saving developers time and money when upgrading their designs. Software migration requires minimal effort thanks to continuous support for UBX messages across product generations.


parameter

  • Product variants NEO-M9N
  • GNSS features
  • GNSS BeiDou, Galileo, GLONASS, GPS/QZSS
  • Number of concurrent GNSS 4
  • Oscillators TCXO
  • Interfaces
  • UART ✓
  • USB ✓
  • SPI ✓
  • I2C ✓
  • Electrical data
  • Maximum supply [V] 3.6
  • Minimum supply [V] 2.7
  • Environmental data,
  • quality & reliability
  • Maximum temperature [°C] 85
  • Minimum temperature [°C] -40
  • Features
  • Antenna supervisor ✓
  • Data logging ✓
  • FW update via serial interface ✓
  • Internal oscillator ✓
  • RTC crystal ✓
  • Dimensions
  • Dimensions [mm] 12.2 x 16.0 x 2.4
  • Services
  • AssistNow ✓

    Scope of delivery :

    • 1 x piece

    Original NEO-M8N/M9N-00B GPS Module GNSS positioning controller module with antenna

    Product form

    The NEO-M9N module is based on the robust u-blox M9 GNSS chip, which provides exceptional sensitivity and acquisition times for... Read more

    16 in stock Next-day delivery  Midweeks
     Monday to Friday we offer next day delivery if the product is on stock and exceptions on holidays.

    Weekends
    We do not offer deliveries on the weekends.

    International
    Depending on where you're located, we offer next day delivery. Check status on this link

    €19,99 Incl. VAT

      • Guaranteed secure & safe checkout.

        shop pay
        • Free shipping for all orders over 50€

        • Hassle-free return , 30-day return policy

        Description

        The NEO-M9N module is based on the robust u-blox M9 GNSS chip, which provides exceptional sensitivity and acquisition times for all L1 GNSS systems. The u-blox M9 standard precision GNSS platform, offering meter-level accuracy, is the successor to the renowned u-blox M8 product line. The NEO-M9N supports simultaneous reception of four GNSS signals. The high number of visible satellites allows the receiver to select the best signals. This maximizes positioning accuracy, especially in challenging conditions such as deep urban canyons. The NEO-M9N detects jamming and spoofing events and reports them to the host, allowing the system to respond to such events. Advanced filtering algorithms mitigate the effects of RF interference and jamming, enabling the product to operate as intended. The NEO-M9N module integrates a SAW filter combined with an LNA in the RF path. This design enables normal operation even in the presence of strong RF interference, such as when a cellular modem is coupled to the NEO-M9N. The NEO-M9N offers backward pin-to-pin compatibility with previous u-blox generations, saving developers time and money when upgrading their designs. Software migration requires minimal effort thanks to continuous support for UBX messages across product generations.


        parameter

        • Product variants NEO-M9N
        • GNSS features
        • GNSS BeiDou, Galileo, GLONASS, GPS/QZSS
        • Number of concurrent GNSS 4
        • Oscillators TCXO
        • Interfaces
        • UART ✓
        • USB ✓
        • SPI ✓
        • I2C ✓
        • Electrical data
        • Maximum supply [V] 3.6
        • Minimum supply [V] 2.7
        • Environmental data,
        • quality & reliability
        • Maximum temperature [°C] 85
        • Minimum temperature [°C] -40
        • Features
        • Antenna supervisor ✓
        • Data logging ✓
        • FW update via serial interface ✓
        • Internal oscillator ✓
        • RTC crystal ✓
        • Dimensions
        • Dimensions [mm] 12.2 x 16.0 x 2.4
        • Services
        • AssistNow ✓

          Scope of delivery :

          • 1 x piece
