Single-Channel Frequency Input Safety Barrier HD-506
The Frequency safety barrier HD-506 is used for safe separation and signal transmission between potentially explosive areas (zone 0, 1, 2) and the safe zone.
The device converts Frequency pulse signals (0.1Hz–100kHz) into a standardized output signal (e.g. 4–20mA or 0–10V) around.
Thanks to galvanic isolation between input, output and supply voltage ensures maximum safety and reliability. Online error diagnosis and PC programming options, the barrier can be flexibly adapted.
Certified according to [Ex ia Ga] IIC (NEPSI), this device is ideal for applications in the Process automation, chemical, petrochemical, energy and manufacturing industries .
Advantages
-
Safe signal transmission between Ex area (Zone 0–2) and safe area
-
Supports frequency input signals up to 100kHz
-
Converts signals into 4–20mA, 0–10V, 0–5V or 1–5V to
-
Galvanic isolation between Input, output and supply
-
Error self-diagnosis for reliable operation
-
Ex ia IIC certification for maximum safety in potentially explosive areas
-

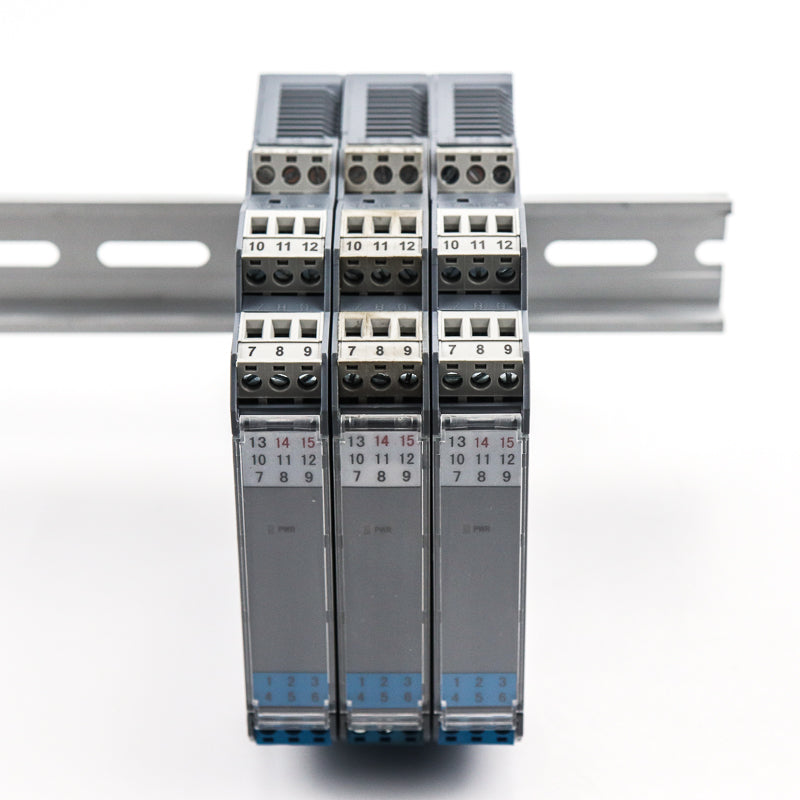

Compact design (only 12.7mm wide) for DIN rail mounting

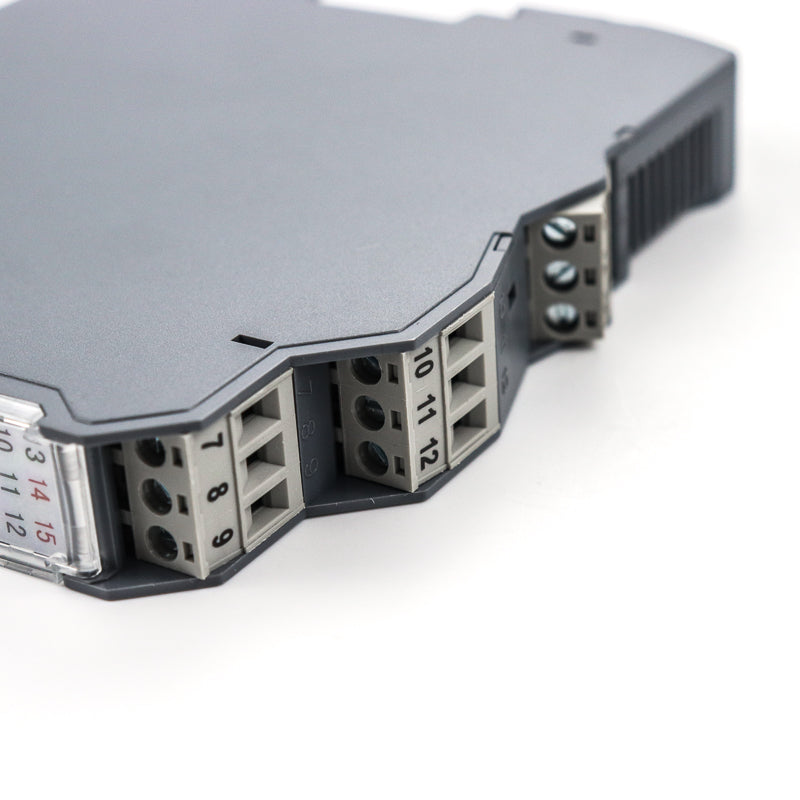

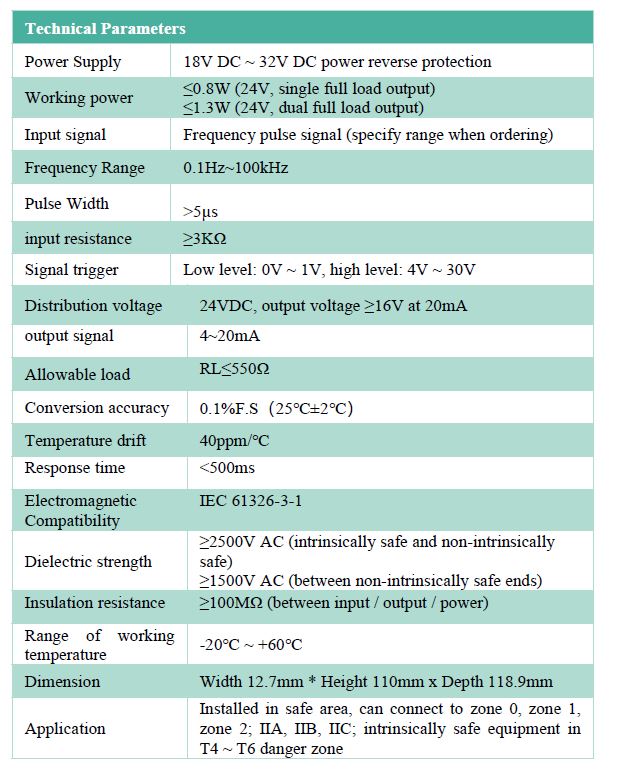

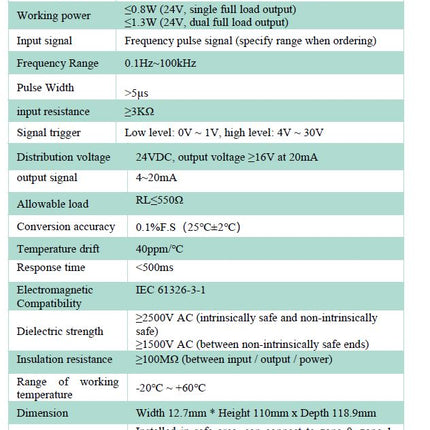

Technical data
| category
|
Details |
| Model series
|
HD-506 |
| Supply voltage
|
18–32VDC (with reverse polarity protection) |
| Power consumption
|
≤0.8W (Single), ≤1.3W (Dual) |
| Input signal
|
Frequency pulse signal |
| Frequency range |
0.1Hz – 100kHz |
| Pulse width
|
>5 μs |
| Input resistance
|
≥3 kΩ |
| Signal trigger
|
Low: 0–1V, High: 4–30V |
| Distribution voltage
|
24VDC, ≥16V @ 20mA |
| Output signals
|
4–20mA, 1–5V, 0–5V, 0–10V, others |
| Max. load
|
≤550Ω (at 4–20mA) |
| accuracy
|
±0.1% FS (25°C ±2°C) |
| Temperature drift
|
40 ppm/°C |
| Reaction time
|
<500 ms |
| Insulation voltage
|
≥2500V AC (intrinsically safe), ≥1500V AC (non-intrinsically safe) |
| Insulation resistance |
≥100 MΩ |
| Operating temperature
|
-20°C to +60°C |

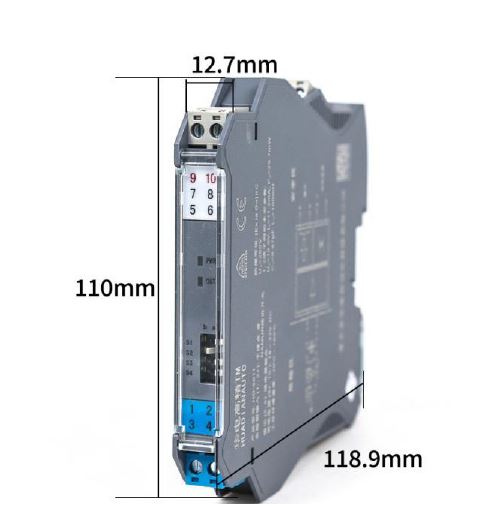

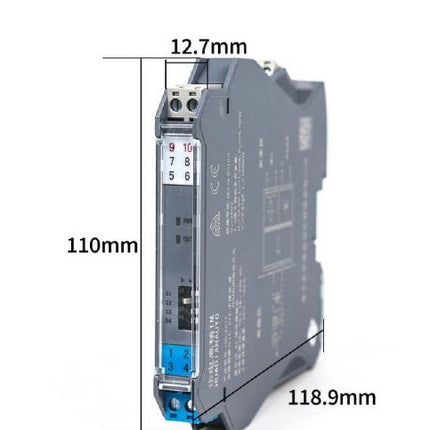

| Dimensions (W H D)
|
12.7mm × 110mm × 118.9mm |
| Certification
|
NEPSI, Ex ia IIC, Zone 0/1/2, T4-T6 |
