Description
Steering angle: 180 degrees Control by remote control
- Current: 4.8V/470mA 6.0V /650mA
- Load current: 4.8V/750mA 6.0V/950mA
- Dead band:2usec
- Lifespan:>15000 times without load
- Moving angle: 60 ° ± 10 °
- Stick Type: MOS stick
- Motor type: Cored motor
- Potentiometer type: Direct drive
- Signal Booster Type: Digital
- Size: 40.5X20.2X40.3mm
- Weight: 62g (without accessories)
- Ball bearings: 2BB

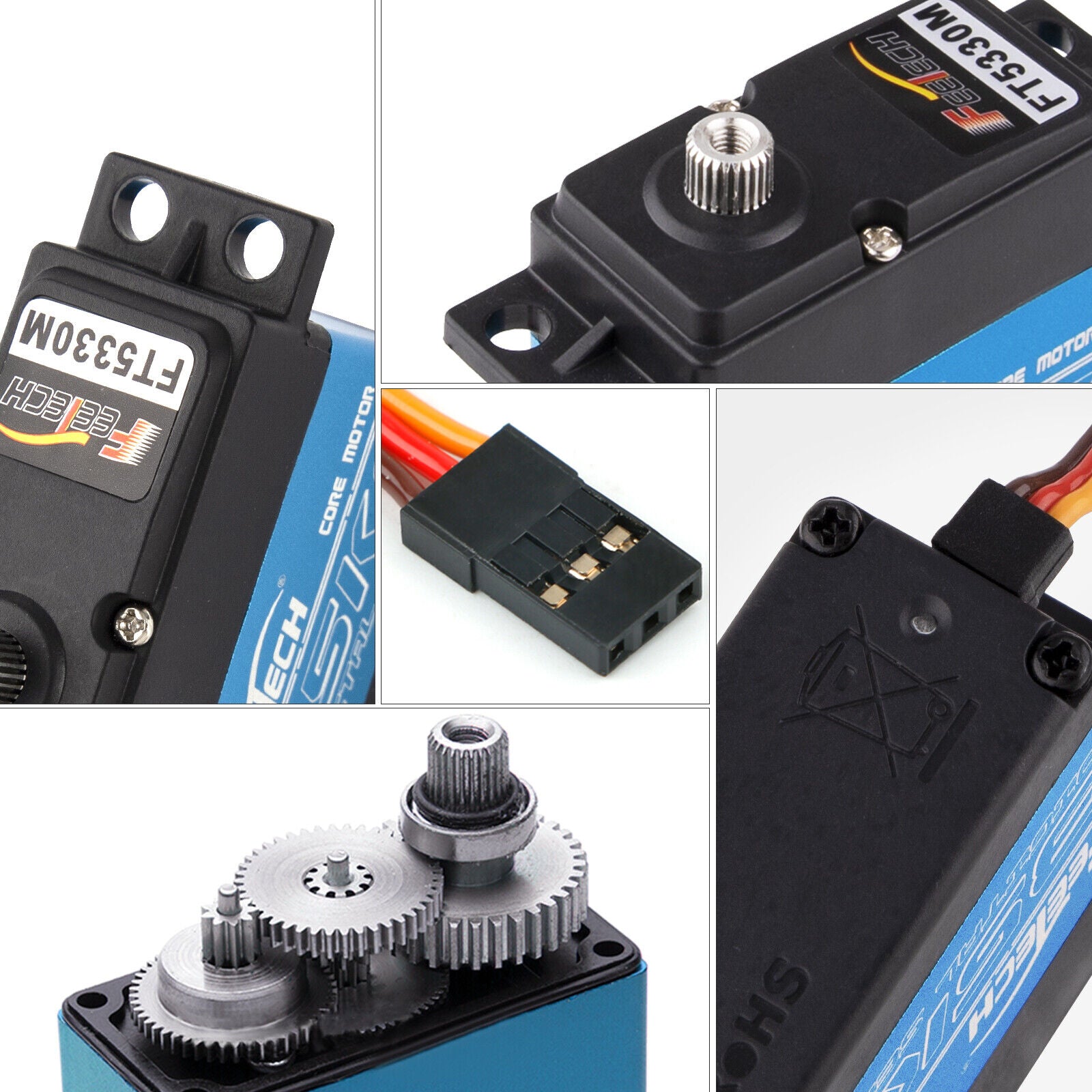

- Gearbox Material: Metal Gearbox
- Case Material: PA66+fiber40%
- Wire length: 260mm
- Connector type: 26AWG,JR connector
- Brown Wire: Negative
- Red wire: Positive
- Orange wire: signal
- Application: RC car, RC airplane, helicopter
25KG servo:
- Storage temperature range: -30 °C ~ 80 °C
- Operating temperature: -25 °C ~ 70 °C
- Temperature range: -25 °C ~ 70 °C
- Humidity range: 65% ± 10%
- Size: 40.0*20.5*40.5mm
- Weight: 56g ± 2g
- Gearbox Type: 5 Metal
- limit angle: 360 °
- bearing: 2BB
- Head gear spline: 25T Diameter: 5.9mm
- Head type: plastic, POM
- Case: Engineering plastic (PBT)+ aluminum alloy
- Connector wire: 320mm ± 5mm
- Motor: Carbon brush motor
Steering angle: 180 degrees Control by remote control
- Voltage: 4.8 V-7.2 V
- no load speed: 0.18 sec/60 °-0.14 sec/60 °
- Current: 140mA - 200mA
- Peak Torque: 23.5kg.cm-26.8kg.cm
- Current: 2600mA ± 10% - 3400mA ± 10%
- Voltage range: 4.8-7.2 V
- Command Signal: Pulse width change
- Amplifier Type: Digital Controller
- Pulse wide range: 500 ~ 2500usec
- Neutral position: 1500usec
- Running degree: 180 ° ± 3 ° (when 500 ~ 2500usec)
- Dead band width: 5 usec
- rotating direction counterclockwise: (when 1000 ~ 2000usec)

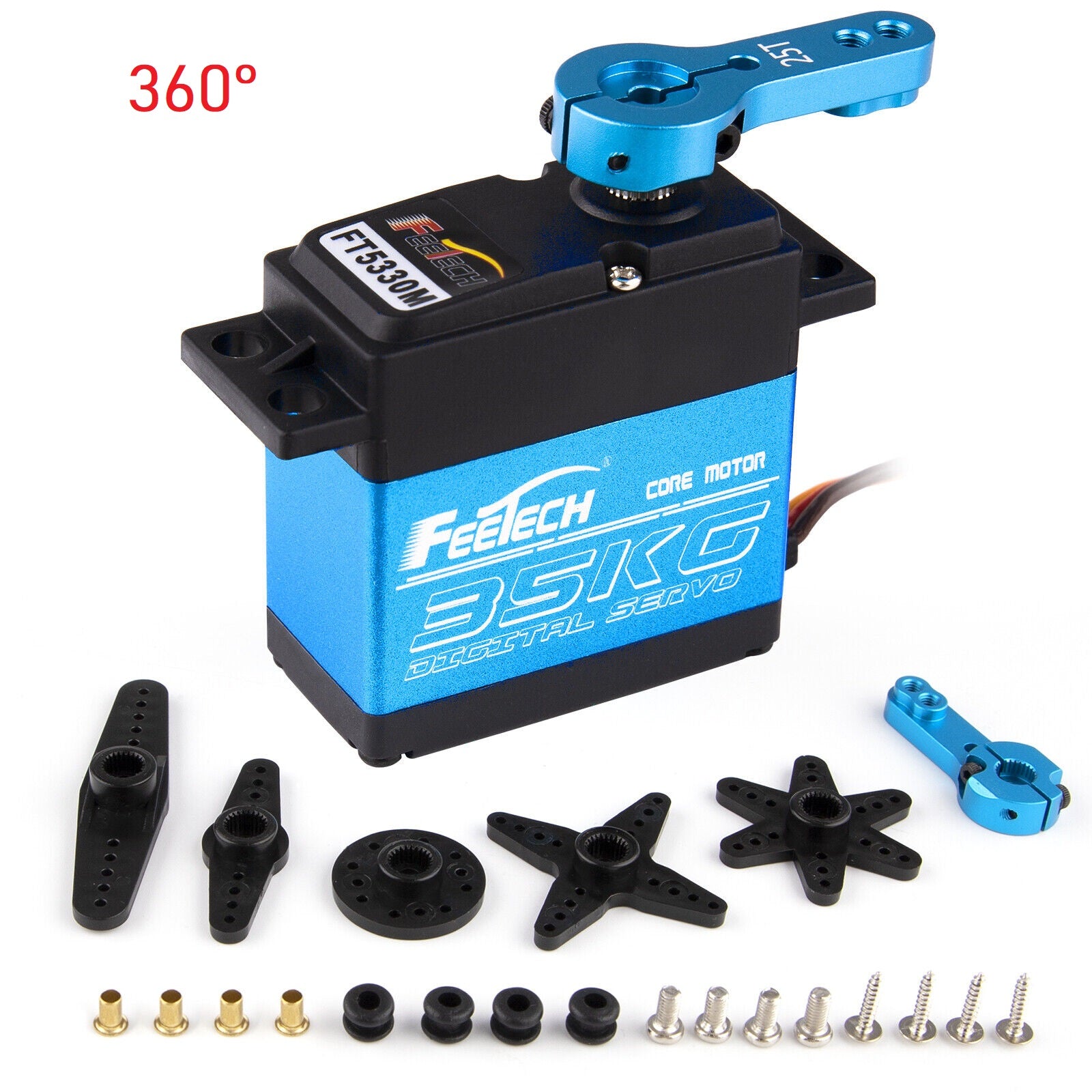

Attention !!! 360° Servo: Rotate continuously either left or right

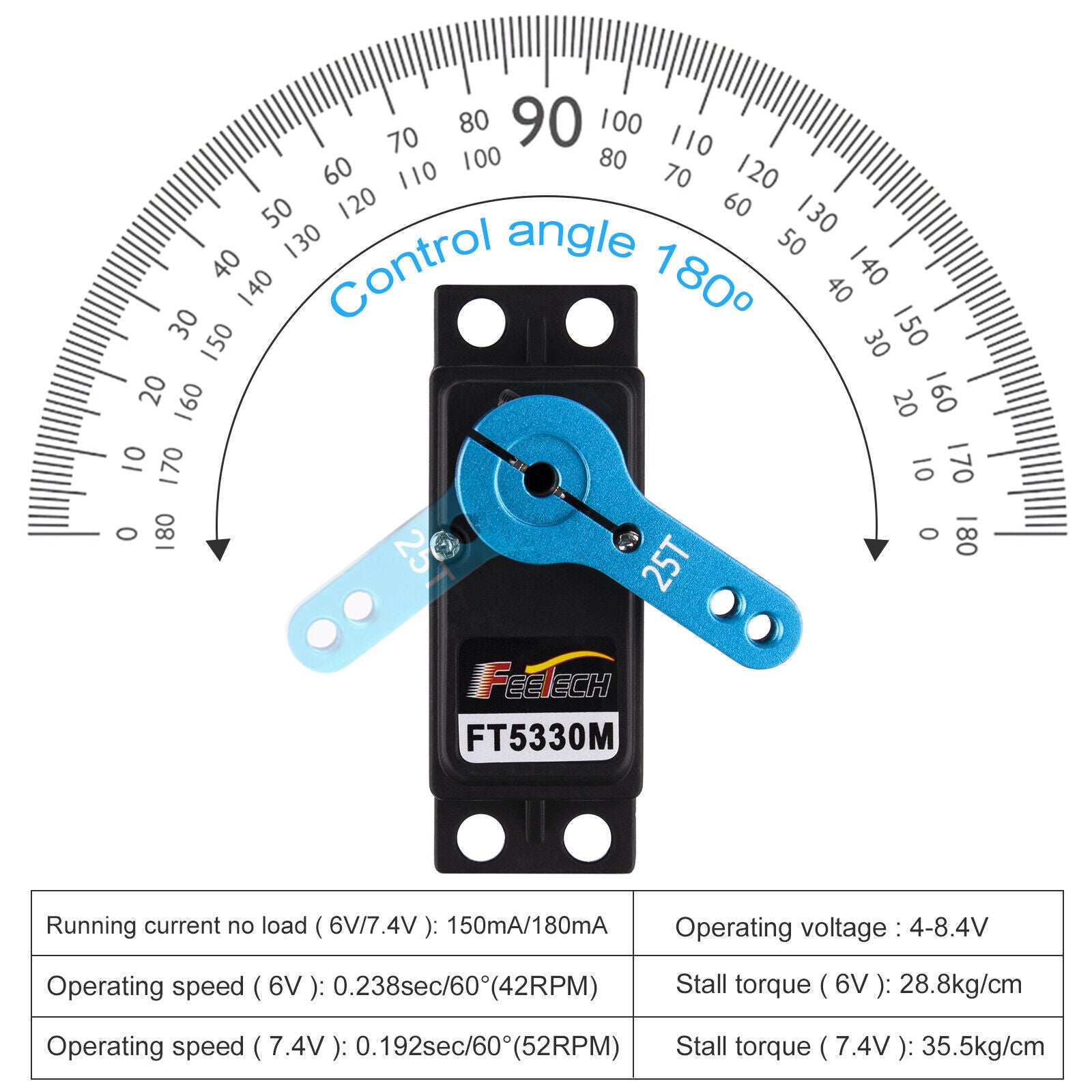

35KG servo:
- Operating voltage range: 4-8.4 V
- Operating speed (6 V): 0.238 seconds/60 ° (42 rpm)
- Operating speed (7.4V): 0.192sec/60 ° (52RPM)
- Stall torque (6V): 28.8kg/cm
- Stall Torque (7.4V): 35.5kg/cm
- Running current no load (6V): 150mA
- Running current without load (7.4V): 180mA
- Stall current at blocking (6V): 3.2a
- Stall current when locked (7.4V): 3.9A
- No-load current (at standstill): 6mA
- Rated torque (6V): 9.5kg.cm
- Rated torque (7.4V): 11.8kg cm
- Rated current (6V): 1000mA
- Rated current (7.4 V): 1200 mA
- Control specification:
- Control: PWM (pulse width change)
- Pulse width range: 500-2500 μsec
- Neutral position: 1500 μsec
- Degree of travel: 180 ° (at 500-2500 μsec)
- Dead band width: ≤ 4 μsec
- Direction of rotation: counterclockwise (at 1500-2500 μsec)
- Control: PWM (pulse width change)
- Pulse width range: 500-2500 μsec
- Neutral position: 1500 μsec
- Degree of travel: 180 ° (at 500-2500 μsec)
- Dead band width: ≤ 4 μsec

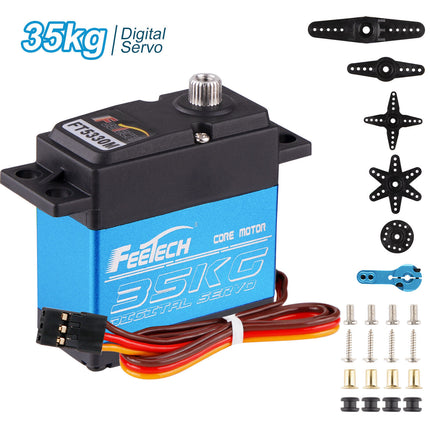

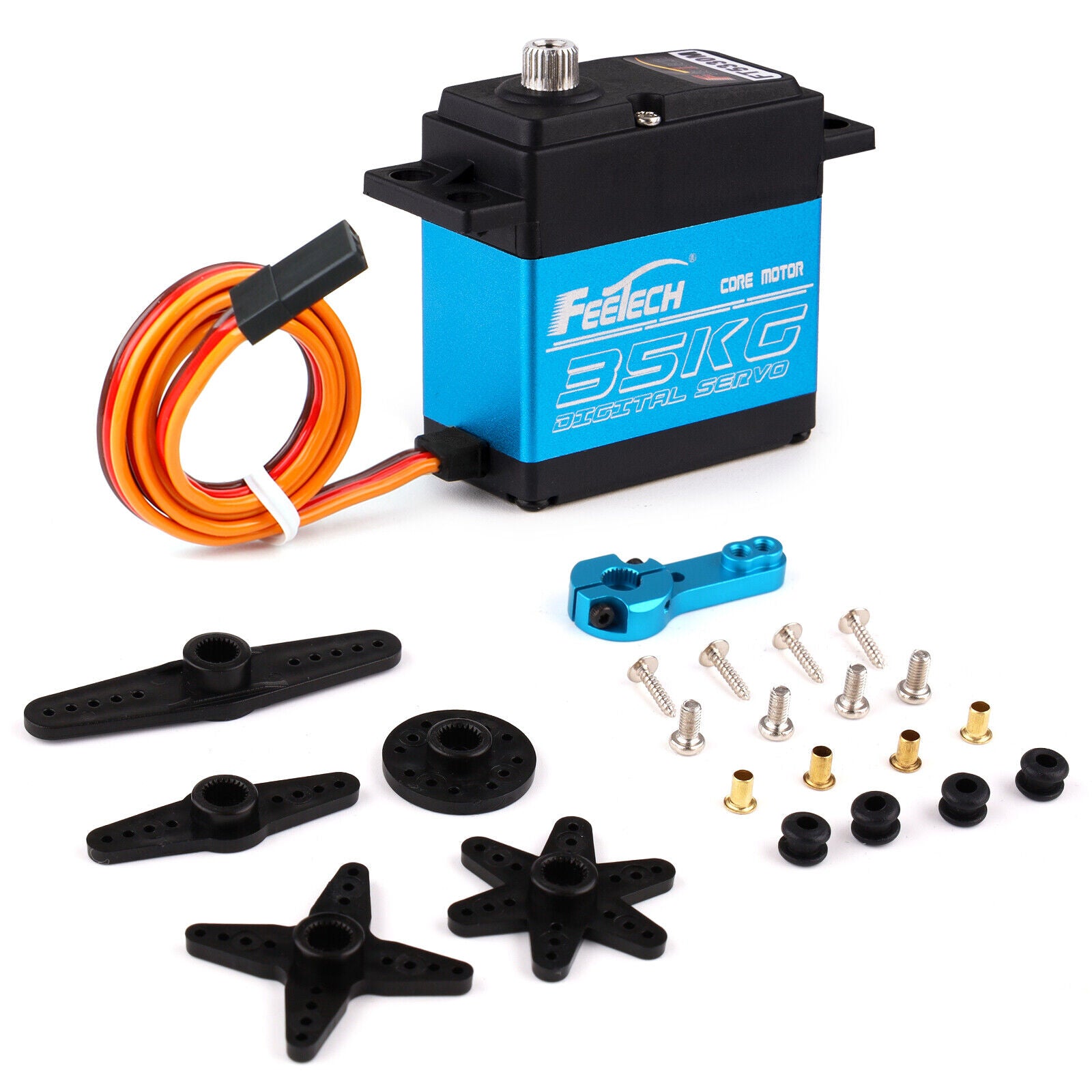

Scope of delivery :
